UPE
DIMENSIONS
Quality
Available in S355J2 according EN10025 with matching 3.1 MTC.
Available from stock up to 12 meter lengths.

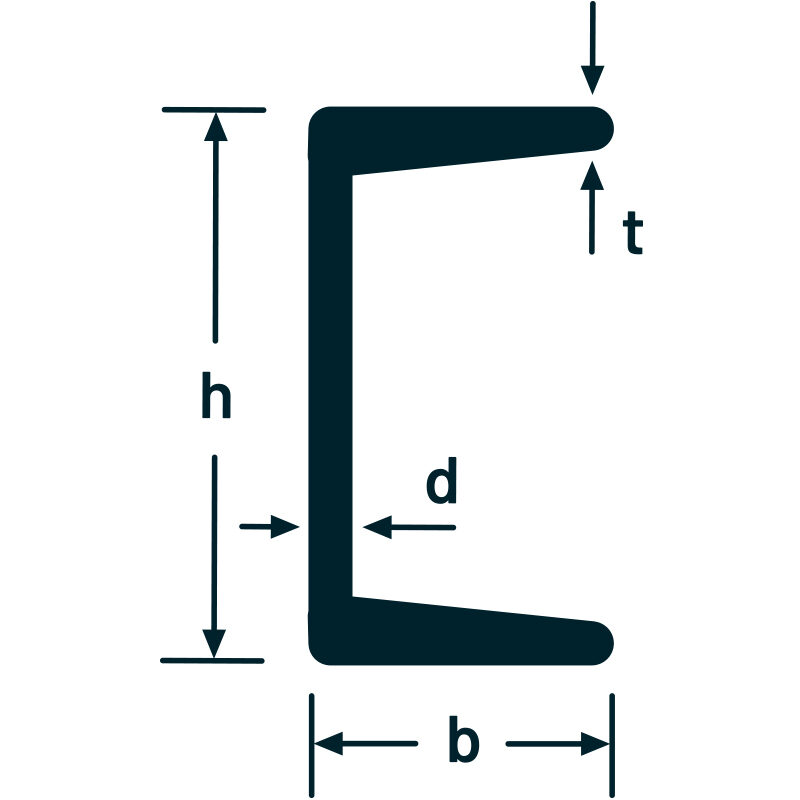

| UPE profile | H x B x D x T (mm) | Weight kg/meter | Max. length |
| 80 | 80 x 50 x 4,0 x 7,0 | 8,1 | 12 meter |
| 100 | 100 x 55 x 7,5 x 4,5 | 9,9 | 12 meter |
| 120 | 120 x 60 x 8,0 x 5,0 | 12,4 | 12 meter |
| 140 | 140 x 65 x 9,0 x 5,0 | 14,8 | 12 meter |
| 160 | 160 x 70 x 9,5 x 5,5 | 17,4 | 12 meter |
| 180 | 180 x 75 x 10,5 x 5,5 | 20,2 | 12 meter |
| 200 | 200 x 80 x 11,0 x 6,0 | 23,3 | 12 meter |
| 220 | 220 x 85 x 12,0 x 6,5 | 26,6 | 12 meter |
| 240 | 240 x 90 x 12,5 x 7,0 | 30,2 | 12 meter |
| 270 | 270 x 95 x 13,5 x 7,5 | 36,1 | 12 meter |
| 300 | 300 x 100 x 15,0 x 9,5 | 45,3 | 12 meter |
| 330 | 330 x 105 x 16,0 x 11,0 | 54,2 | 12 meter |
| 360 | 360 x 110 x 17,0 x 12,0 | 62,3 | 12 meter |
| 400 | 400 x 115 x 18,0 x 13,5 | 73,5 | 12 meter |
