Beams and columns
HEM
DIMENSIONS
Quality
Available in S235JR, S275JR, and S355J2 according EN10025 with matching 3.1 MTC.
Available from stock up to 25 meter lengths.

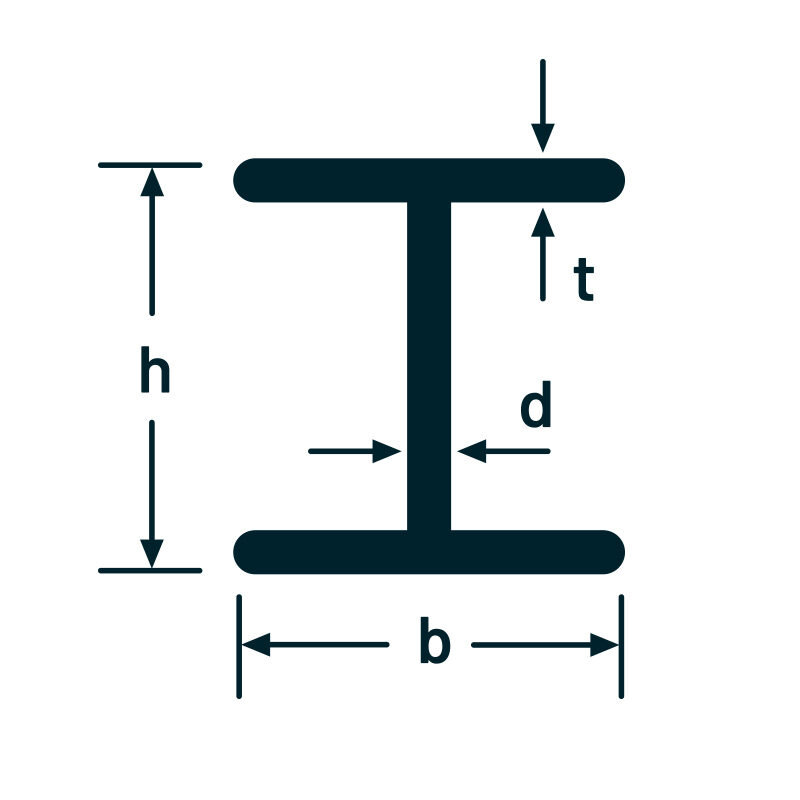

| HEM profile | H x B x D x T (mm) | Weight kg/meter | Max. length |
| 100 | 120 x 106 x 12,0 x 20,0 | 42,6 | 18 meter |
| 120 | 140 x 126 x 12,5 x 21,0 | 53,1 | 18 meter |
| 140 | 160 x 146 x 13,0 x 22,0 | 64,5 | 18 meter |
| 160 | 180 x 166 x 14,0 x 23,0 | 77,8 | 18 meter |
| 180 | 200 x 186 x 14,5 x 24,0 | 90,6 | 20 meter |
| 200 | 220 x 206 x 15,0 x 25,0 | 105,0 | 25 meter |
| 220 | 240 x 226 x 15,5 x 26,5 | 119,3 | 25 meter |
| 240 | 270 x 248 x 18,0 x 32,0 | 160,0 | 25 meter |
| 260 | 290 x 268 x 18,0 x 32,5 | 175,3 | 25 meter |
| 280 | 310 x 288 x 18,5 x 33,0 | 192,7 | 25 meter |
| 300 | 340 x 310 x 21,0 x 39,0 | 242,6 | 25 meter |
| 320 | 359 x 309 x 21,0 x 40,0 | 249,7 | 25 meter |
| 340 | 377 x 309 x 21,0 x 40,0 | 252,8 | 25 meter |
| 360 | 395 x 308 x 21,0 x 40,0 | 254,8 | 25 meter |
| 400 | 432 x 307 x 21,0 x 40,0 | 260,9 | 25 meter |
| 450 | 478 x 307 x 21,0 x 40,0 | 268,1 | 25 meter |
| 500 | 524 x 306 x 21,0 x 40,0 | 275,2 | 25 meter |
| 550 | 572 x 306 x 21,0 x 40,0 | 283,4 | 25 meter |
| 600 | 620 x 305 x 21,0 x 40,0 | 290,5 | 25 meter |
| 650 | 668 x 305 x 21,0 x 40,0 | 298,6 | 25 meter |
| 700 | 716 x 304 x 21,0 x 40,0 | 306,4 | 25 meter |
| 800 | 814 x 303 x 21,0 x 40,0 | 323,4 | 25 meter |
| 900 | 910 x 302 x 21,0 x 40,0 | 338,9 | 25 meter |
| 1000 | 1008 x 302 x 21,0 x 40,0 | 355,3 | 25 meter |
Dimensions (mm)
Dimensions (mm)
